Map layers

Manage map layers

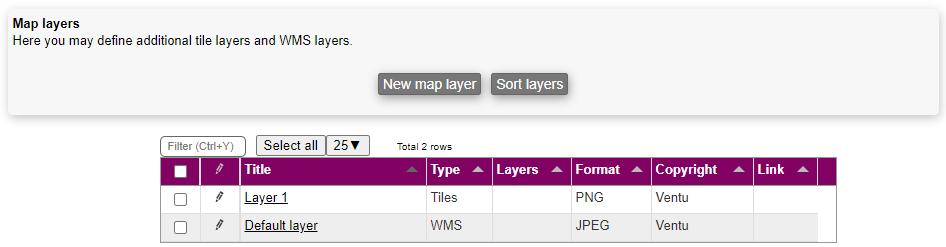

Accessing map layers is done by accessing the SETTINGS > MAP LAYERS menu.

In the same menu, it's possible to edit and delete the existing map layers.

Creating a map layer

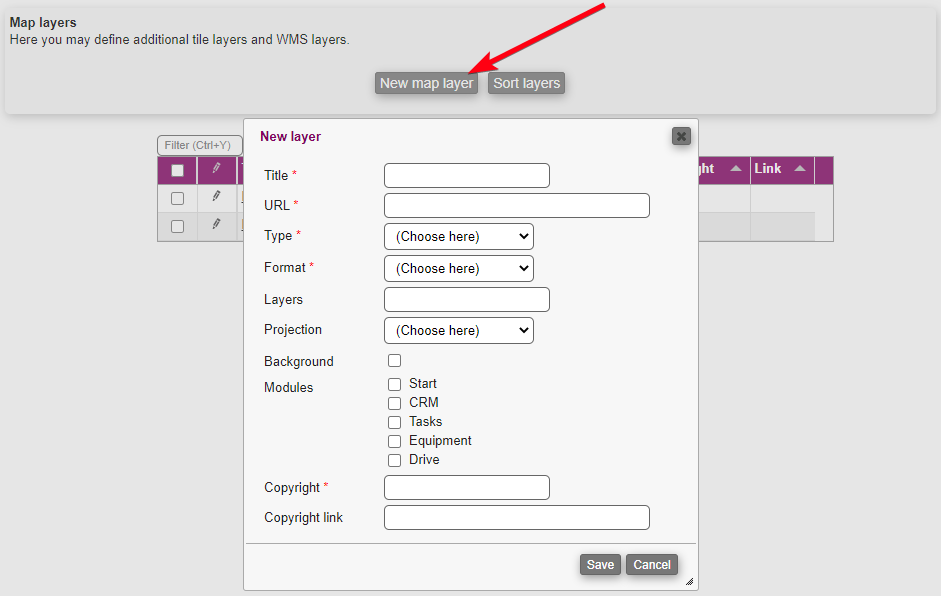

Creating a map layer is done by using the New map layer button.

To create a new map layer you need to fill out the following:

• Title: Name of the map layer

• URL: A URL for the new map layer

• Type: Choose one of the following types:

  • Tiles

  • WMS

• Format: Choose one of the following formats, this is only relevant for WMS maps:

  • JPEG

  • PNG

• Layers:  This is only relevant for WMS maps; the value is passed on to the WMS server to tell it which layers to use

• Projection: Choose one of the following projections:

  • WebMercator

  • EPGS:25832

• Background: This specifies if this is a background layer (eg. satellite photo) or a foreground layer (eg. water pipes or bicycle paths)

• Modules: The modules checked here, will have the new map layer available

• Copyright: A text for copyright

• Copyright link: A link for the copyright

When you are done creating the map layer, you can press Save.

Notice: you should not attempt to mix maps in different projections.

Assign map layer

To assign a map layer, you can do so as explained here.

External sources of maps

Here are some possible sources of maps. Ventu claims no responsibility for the availability/accuracy/usefulness of the maps or of the list below.

Denmark

dataforsyningen.dk has a large number of background maps and layers. You will need to create a (free) login and get token for accessing the maps; insert the token in the URLs instead of MYTOKEN. You can explore the maps on https://sdfikort.dk/spatialmap.

Germany
